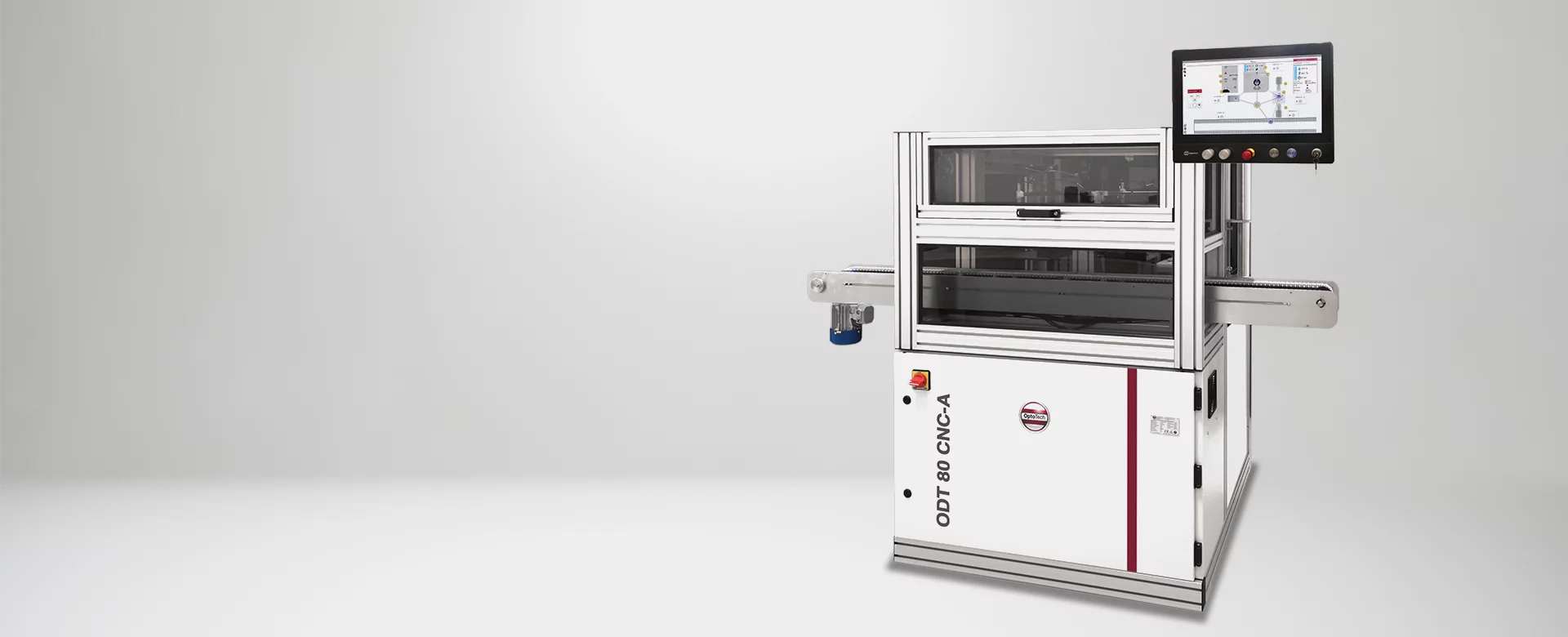

ODT 80 CNC-A

The automatic lens de-taper ODT 80 CNC-A is the ideal and flexible lens de-taper for small, midsize and big laboratories, using high pressure cold DI water technology.

Spectacle optics

De- / Taping

Automation

Plastic

Mineral Glass

View now

Contact request

Highlights

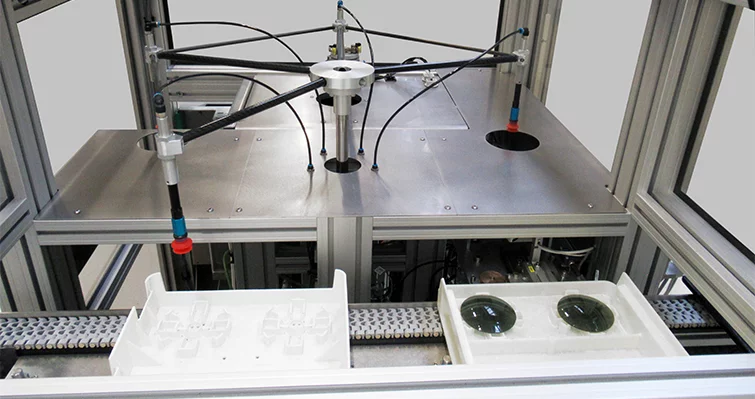

Equipped with a light carbon fiber handling for highest efficiency
Lens centering station with included lens curve measuring
Macro-controlled adjustment of processing parameters
Sustainable green process: Low air consumption and a closed water cycle

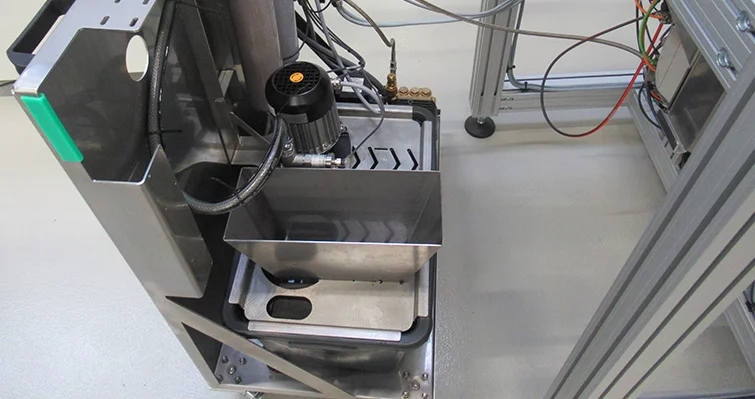

Pumping system with 2 filters (20μm and 1μm) mounted on cart for easy access
Spraying station can be moved out like a drawer for cleaning and maintenance
Productivity: Up to 300 lenses/h

System advantage

Reliable fully automated lens de-taping with ultimate efficiency, high process consistency and simplified usability
Open system can easily be integrated in any existing production and compact design for a small footprint
Easy access to waste container without having to use tools and to all parts of the machine for most convenient maintenance, on cart for better access
Sustainable green process

Options

Integrated camera system for energy and time saving
Heated knife tape preparation
Tape removal sensor

	ODT 80 CNC-A
Application	Automatic Lens De-Taper
Lens Diameter	55 mm - 84 mm
Control	PLC Controller in combination with 18.5 Touch-Screen and Windows
Lens Material	All Material
Lens Shape	Round, Oval, Complex Cribbing
Productivity	300 lenses/h
Air Pressure Requirement	5 bar
Power Requirement (others on request)	4 kW / 400 V / 50 Hz 3 Phase
Dimensions	Width: 1800 mm, Height: 2100 mm, Depth: 1300 mm; incl. conveyor & signal lamp
Weight (approx.)	460 kg
Disclaimer	All data are subject to change without notice. Please verify details with OptoTech.
