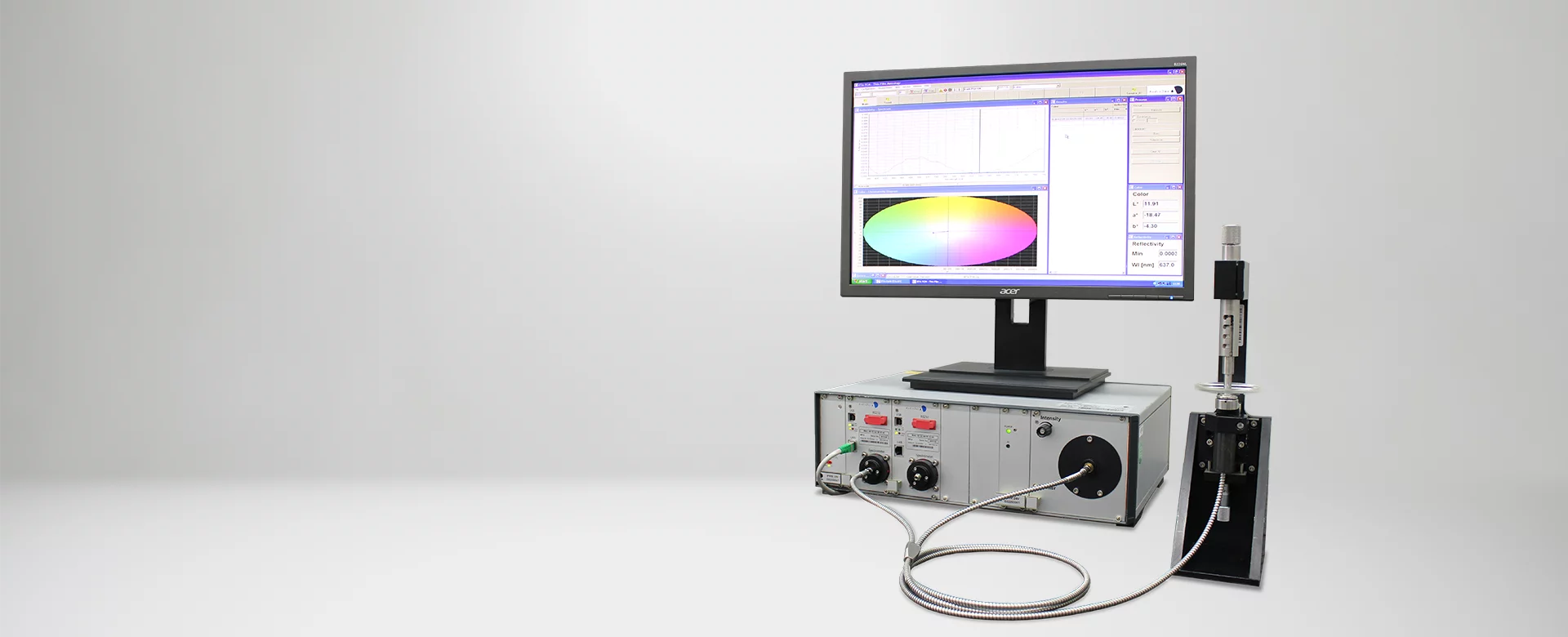

Spectrophotometer ETA-ARC

The OptoTech Spectrophotometer ETA-ARC is a fast, precise and easy-to-use measuring system for thin film coatings and hard coatings.

Coating

Quality Testing

Contact request

Highlights

Fast, precise and easy-to-use measuring system for coating properties especially for ophthalmic anti-reflection and hard coatings

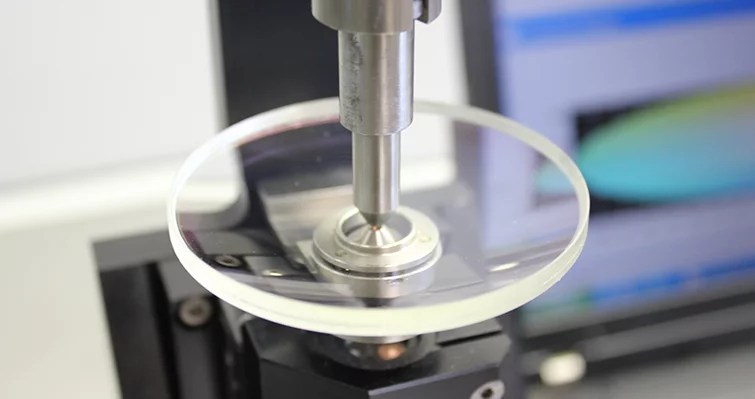

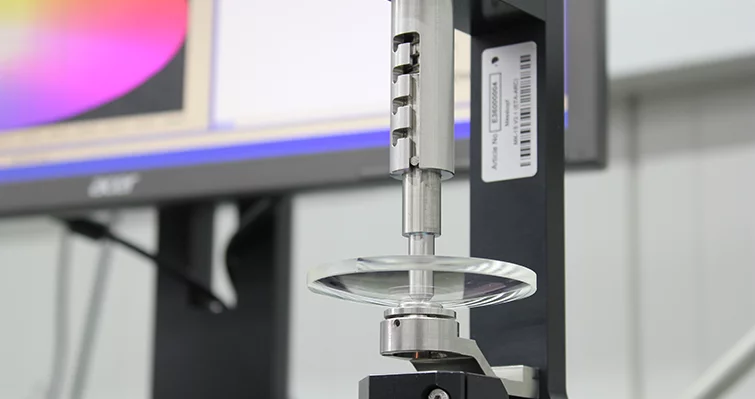

The measurement can be done on the curved ophthalmic lenses directly without any special preparation of the backside. Front and backside can be measured individually
No preparation of the backside surface necessary: Measuring probe rejects 100% of the backside surface reflections on ≥ 2mm substrates
No roughening or blackening of the sample-backside needed for Features substrates with a thickness of ≥ 2mm

Measuring of coating properties:

	Spectrophotometer ETA-ARC
Colour Temperature	3000 K
Optical Resolution	5.2 nm
Spectral Range	380 to 1070 nm
Thickness Range / Accuracy	0.1-20 µm / ± 0.04 µm
Typical Measuring Time	≤ 0.2 s
Wavelength Accuracy	± 0.5 nm
Disclaimer	All data are subject to change without notice. Please verify details with OptoTech.
